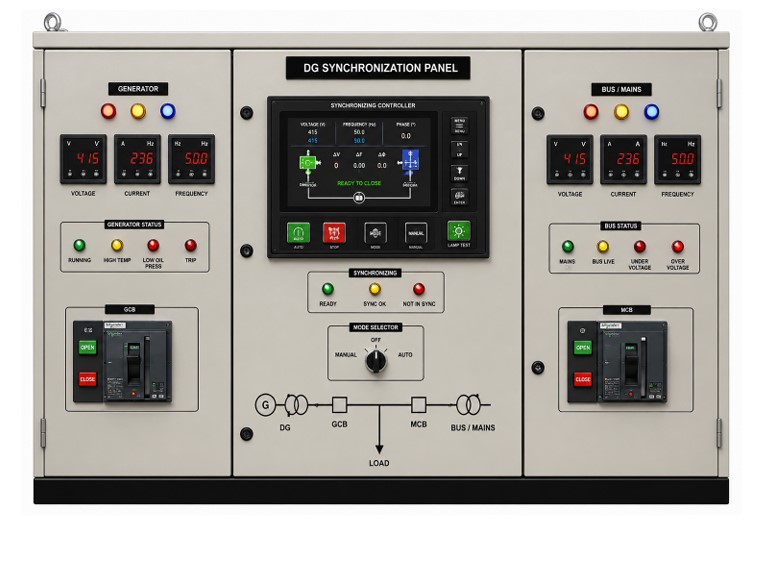

DG Synchronization Panel

Diesel Generator Synchronization Panel

In high-demand environments where continuous power is critical, a single generator isn’t enough—seamless integration of multiple DG sets becomes vital. At Greenventum, our Diesel Generator Synchronization Panel are crafted to intelligently manage and synchronize multiple generator sets with each other or with the grid, ensuring zero downtime, optimized fuel usage, and smart load sharing. These panels are the nerve centre of resilient power systems, offering real-time control, monitoring, and performance analytics.

Key Features of Greenventum Generator Synchronization Panel

  • Voltage Rating: 415V / 690V, 3-phase systems
  • DG Set Capacity Supported: Up to 5000 kVA per set
  • Controller Types: PLC-based or digital microprocessor-based (DEIF, ComAp, Deep Sea, Woodward)
  • Synchronization Functions:
    – Voltage & frequency matching
    – Phase sequence alignment
    – Auto load sharing and load shedding
    – Auto start/stop and changeover
    – Grid export/import control
  • Generator Protection Features:
    – Over/under voltage & frequency
    – Overload, reverse power, engine fault
    – Earth fault and neutral monitoring
  • Busbar System: Tinned copper or aluminum, rated up to 65kA
  • Communication: SCADA, HMI, Modbus RTU/TCP, RS-485, Ethernet-ready
  • Auto-Mains Failure (AMF) Integration: Built-in AMF for mains monitoring
  • Touchscreen HMI Interface: Real-time alarms, kWh logs, load graph, and start/stop logs
  • Manual Override Switches: For emergency manual operation
  • Enclosure: IP42–IP65 rated powder-coated CRCA steel / SS 304
  • Compliance Standards: IEC 61439-1, IS 8623, ISO 8528, IEEE 1547

Greenventum Powertech Solutions DG Load Sharing Panel

An unique power management system called the Greenventum Powertech Solutions DG Load Sharing Panel was created to guarantee efficient and balanced power distribution across several diesel generators. This smart method reduces fuel usage and improves overall efficiency by automatically synchronizing generators and distributing the electrical load equally.  (IEEE electrical standards)

Key Benefits of Greenventum DG Synchronizing Panel

  • Seamless Power Continuity
    Eliminates power dips and blackouts during transitions or generator failures.
  • Optimized Generator Performance
    Enables intelligent load sharing to prevent overloading and underutilization of DG sets.
  • Reduced Fuel Consumption
    Runs only required number of DGs based on load demand, minimizing unnecessary fuel use.
  • Scalable & Modular Configuration
    Easily expandable panel designs accommodate additional generators or grid sources.
  • Remote Monitoring & Control
    Access generator performance, status, and fault logs from anywhere via cloud-based SCADA/BMS.
  • Smart Grid Integration
    Capable of synchronizing with utility supply for peak shaving, export control, and islanding.
  • Enhanced Equipment Life
    Balanced loads and protection systems extend the life of generator engines and alternators.
